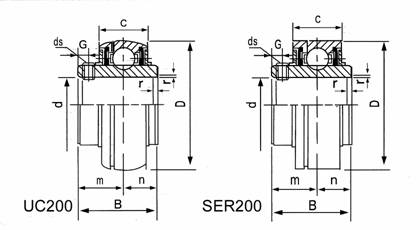

Bearing Number UC-- |
Shaft Diameter d |
Dimensions (mm) |
Basic Load Ratings (KN) |
Weight (Kg) |
||||||||
inch |
mm |
D |
B |
C |
n |
m |
G |
ds |
Cr |
Cor |
||
203 203-11 |
11/16 |
17 |
40 |
27.4 |
14 |
11.5 |
15.9 |
4.5 |
1/4-28UNF M5X0.8 |
9.57 |
4.79 |
0.16 0.15 |
204 204-12 |
3/4 |
20 |
47 |
31 |
16 |
12.7 |
18.3 |
5 |
1/4-28UNF M6X1 |
12.8 |
6.65 |
0.18 0.17 |
205 205-14 205-15 205-16 |
7/8 15/16 1 |
25 |
52 |
34.1 |
17 |
14.3 |
19.8 |
5.5 |
1/4-28UNF M6X1 |
14.0 |
7.88 |
0.20 0.23 0.21 0.20 |
206 206-18 206-19 206-20 |
1-
1/8
1-
3/16 1-1/4 |
30 |
62 |
38.1 |
19 |
15.9 |
22.2 |
6 |
1/4-28UNF M6X1 |
19.5 |
11.5 |
0.33 0.35 0.33
0.31 |
207 207-20 207-21 207-22 207-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35 |
72 |
42.9 |
20 |
17.5 |
25.4 |
7.0 |
5/16-24UNF M8X1 |
25.5 |
15.2 |
0.49 0.55 0.52 0.49 0.46 |
208 208-24 208-25 |
1-1/2 1-9/16 |
40 |
80 |
49.2 |
21 |
19 |
30.2 |
8 |
5/16-24UNF M8X1 |
29.55 |
18.0 |
0.65 0.69 0.66 |
209 209-26 209-27 209-28 |
1-5/8 1-11/16 1-3/4 |
45 |
85 |
49.2 |
22 |
19 |
30.2 |
8 |
5/16-24UNF M8X1 |
31.5 |
20.5 |
0.74 0.84 0.80 0.76 |
210 210-30 210-31 210-32 |
1-7/8 1-15/16 2 |
50 |
90 |
51.6 |
24 |
19 |
32.6 |
10 |
3/8-24UNF M10X1.25 |
35.0 |
23.2 |
0.81 0.88 0.83 0.80 |
NOTE: SER
series are available upon request.
