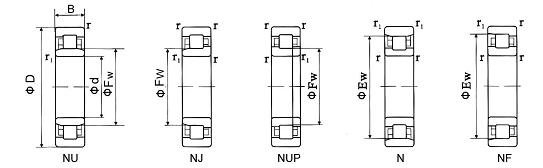

Boundary Dimensions (mm) |
Bearing Numbers |
Weight (Kg) |
||||||||||
|
d |
D |
B |
r |
r1 |
Fw |
Ew |
NU |
NJ |
NUP |
N |
NF |
|
|
20 |
47 |
14 |
1 |
0.6 |
27 |
40 |
NU204 |
NJ204 |
NUP204 |
N204 |
NF204 |
0.108 |
|
47 |
18 |
1 |
0.6 |
27 |
-- |
NU2204 |
NJ2204 |
NUP2204 |
-- |
-- |
0.146 |
|
|
52 |
15 |
1.1 |
0.6 |
28.5 |
44.5 |
NU304 |
NJ304 |
NUP304 |
N304 |
NF304 |
0.147 |
|
|
52 |
21 |
1.1 |
0.6 |
28.5 |
-- |
NU2304 |
NJ2304 |
NUP2304 |
-- |
-- |
0.212 |
|
|
25 |
47 |
12 |
0.6 |
0.3 |
30.5 |
-- |
NU1005 |
-- |
NUP1005 |
-- |
-- |
0.084 |
|
52 |
15 |
1 |
0.6 |
32 |
45 |
NU205 |
NJ205 |
NUP205 |
N205 |
NF205 |
0.132 |
|
|
52 |
18 |
1 |
0.6 |
32 |
-- |
NH2205 |
NJ2205 |
NUP2205 |
-- |
-- |
0.163 |
|
|
62 |
17 |
1.1 |
1.1 |
35 |
53 |
NU305 |
NJ305 |
NUP305 |
N305 |
NF305 |
0.241 |
|
|
62 |
24 |
1.1 |
1.1 |
35 |
-- |
NU2305 |
NJ2305 |
NUP2305 |
-- |
-- |
0.340 |
|
|
30 |
55 |
13 |
1.1 |
1.1 |
36.5 |
-- |
NU1006 |
-- |
NUP1006 |
-- |
-- |
0.121 |
|
62 |
16 |
1 |
0.6 |
38.5 |
53.5 |
NU206 |
NJ206 |
NUP206 |
N206 |
NF206 |
0.200 |
|
|
62 |
20 |
1 |
0.6 |
38.5 |
-- |
NU2206 |
NJ2206 |
NUP2206 |
-- |
-- |
0.262 |
|
|
62 |
20 |
1 |
0.6 |
37.5 |
-- |
NU2206E |
NJ2206E |
NUP2206E |
-- |
-- |
0.262 |
|
|
62 |
23.8 |
1 |
1 |
38.5 |
-- |
NU3206 |
-- |
-- |
-- |
-- |
0.343 |
|
|
72 |
19 |
1.1 |
1.1 |
42 |
62 |
NU306 |
NJ306 |
NUP306 |
N306 |
NF306 |
0.358 |
|
|
72 |
19 |
1.1 |
1.1 |
40.5 |
-- |
NU306E |
NJ306E |
NUP306E |
-- |
-- |
0.361 |
|
|
72 |
27 |
1.1 |
1.1 |
42 |
-- |
NU2306 |
NJ2306 |
NUP2306 |
-- |
-- |
0.500 |
|
|
72 |
30.2 |
1.1 |
1.1 |
42 |
-- |
NU3306 |
-- |
-- |
-- |
-- |
0.65 |
|
|
90 |
23 |
1.5 |
1.5 |
45 |
73 |
NU406 |
NJ406 |
NUP406 |
N406 |
NF406 |
0.753 |
|
|
35 |
62 |
14 |
1 |
0.6 |
42 |
-- |
NU1007 |
-- |
NUP1007 |
-- |
-- |
0.182 |
|
72 |
17 |
1.1 |
0.6 |
43.8 |
61.8 |
NU207 |
NJ207 |
NUP207 |
N207 |
NF207 |
0.293 |
|
|
72 |
17 |
1.1 |
0.6 |
44 |
-- |
NU207E |
NJ207E |
NUP207E |
-- |
-- |
0.306 |
|
|
72 |
23 |
1.1 |
0.6 |
43.8 |
-- |
NU2207 |
NJ2207 |
NUP2207 |
-- |
-- |
0.402 |
|
|
72 |
23 |
1.1 |
0.6 |
44 |
-- |
NU2207E |
NJ2207E |
NUP2207E |
-- |
-- |
0.404 |
|
|
72 |
27 |
1.1 |
1.1 |
43.8 |
-- |
NU3207 |
-- |
-- |
-- |
-- |
0.524 |
|
|
80 |
21 |
1.5 |
1.1 |
46.2 |
68.2 |
NU307 |
NJ307 |
NUP307 |
N307 |
NF307 |
0.477 |
|
|
80 |
21 |
1.5 |
1.1 |
46.2 |
-- |
NU307E |
NJ307E |
NUP307E |
-- |
-- |
0.482 |
|
|
80 |
31 |
1.5 |
1.1 |
46.2 |
-- |
NU2307 |
NJ2307 |
NUP2307 |
-- |
-- |
0.696 |
|
|
80 |
31 |
1.5 |
1.1 |
46.2 |
-- |
NU2307E |
NJ2307E |
NUP2307E |
-- |
-- |
0.729 |
|
|
80 |
34.9 |
1.5 |
46.2 |
-- |
NU3307 |
-- |
-- |
-- |
-- |
-- |
0.908 |
|
|
100 |
25 |
1.5 |
1.5 |
53 |
83 |
NU407 |
NJ407 |
NUP407 |
N407 |
NF407 |
1.02 |
|
